Glass ceramic cooktop panel sealing interface design must manage liquids, vapor, debris, heat, cleaning chemicals, assembly variation, and relative movement without placing damaging load on the panel edge. A good seal begins with a defined leak path and protection target, then coordinates the glass edge, frame land, gasket or adhesive geometry, compression, bond preparation, corners, joints, drainage, and service method. The drawing should specify controlled contact zones and keepouts rather than naming a sealant alone. Material compatibility and cure must be verified on the actual surfaces, and the complete assembly should be tested after thermal cycling, cleaning exposure, and tolerance variation.
This guide turns the search intent behind glass ceramic cooktop panel sealing interface design into a drawing-led OEM workflow. It does not supply a universal dimension or material approval; the released appliance design, applicable standards, verified supplier data, and representative validation remain controlling.
Define what the seal must prevent
State whether the interface must resist spilled liquid, cleaning solution, vapor, grease, dust, or only visible debris. Identify the protected components and the direction from which contamination can arrive. A decorative gap cover and a barrier protecting energized electronics are not the same requirement. Define test orientation, exposure volume or method, dwell, temperature, pressure if any, and acceptable evidence. The appliance safety file and manufacturer requirements remain controlling.
For this glass ceramic cooktop panel sealing interface design decision, record the owner, input source, drawing field, verification method, and reaction to missing evidence. Review the requirement with appliance engineering, quality, manufacturing, purchasing, and the glass supplier so that each team works from the same datums, conditions, and acceptance language. Where risk is high, test tolerance extremes instead of relying only on a nominal sample.
Map the full leak path and interfaces

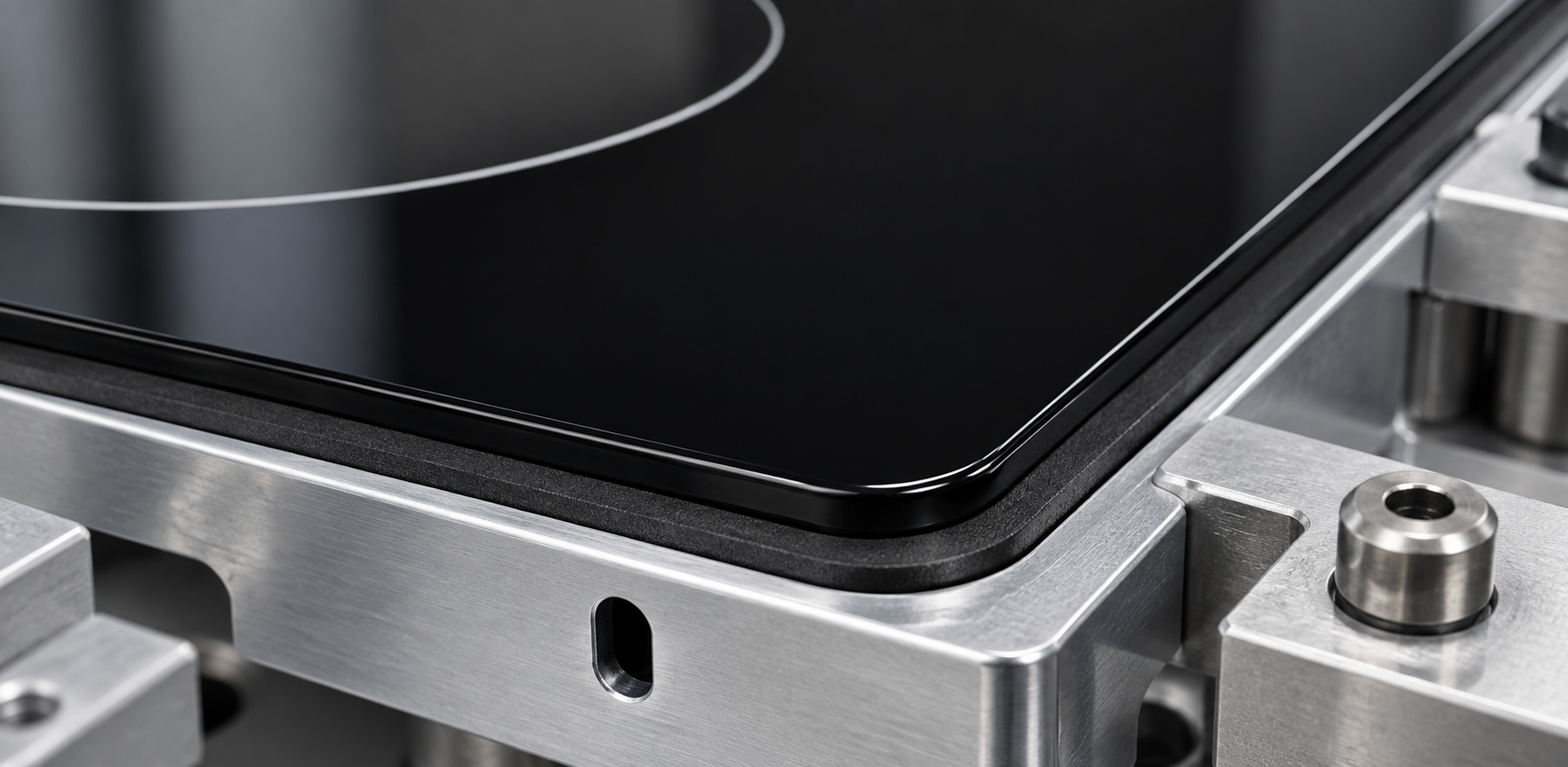

Trace the perimeter from the top surface through the glass edge, gasket or adhesive, frame land, joints, fasteners, cable openings, and drainage features. Liquid often bypasses an apparently continuous top bead through a corner splice, frame seam, low point, or capillary gap. Draw a cross-section at straight runs, corners, joints, and nearby cutouts. Mark surfaces that must remain free of sealant so sensor, ventilation, service, or thermal functions are not impaired.
For this glass ceramic cooktop panel sealing interface design decision, record the owner, input source, drawing field, verification method, and reaction to missing evidence. Review the requirement with appliance engineering, quality, manufacturing, purchasing, and the glass supplier so that each team works from the same datums, conditions, and acceptance language. Where risk is high, test tolerance extremes instead of relying only on a nominal sample.
Choose gasket, adhesive, or hybrid architecture
A preformed gasket can provide controlled compression and serviceability but needs stable land width and joint design. A cured adhesive or sealant can bond and seal while accommodating movement, but bead geometry, surface preparation, cure, and rework become process controls. Hybrid designs can separate locating, cushioning, bonding, and sealing functions. Select architecture from the service environment and production method, then qualify specific materials with the actual glass-ceramic decoration, frame finish, cleaners, and temperature cycle.
For this glass ceramic cooktop panel sealing interface design decision, record the owner, input source, drawing field, verification method, and reaction to missing evidence. Review the requirement with appliance engineering, quality, manufacturing, purchasing, and the glass supplier so that each team works from the same datums, conditions, and acceptance language. Where risk is high, test tolerance extremes instead of relying only on a nominal sample.
Control compression and bond-line geometry
For gaskets, define installed height, target compression range, compression stops where needed, corner treatment, splice position, and allowable discontinuity. Excess compression can load the glass edge or cause permanent set; insufficient compression can leave a leak path. For adhesive, control bead position, cross-section, bond-line thickness, squeeze-out keepouts, and cure conditions. Do not use fastener torque as an indirect seal dimension unless the assembly includes validated hard stops and a controlled stack.
For this glass ceramic cooktop panel sealing interface design decision, record the owner, input source, drawing field, verification method, and reaction to missing evidence. Review the requirement with appliance engineering, quality, manufacturing, purchasing, and the glass supplier so that each team works from the same datums, conditions, and acceptance language. Where risk is high, test tolerance extremes instead of relying only on a nominal sample.
Allow thermal movement without edge loading
The panel and frame can move differently as temperatures change. The seal must accommodate shear and displacement while maintaining contact or adhesion. Avoid hard beads or rigid spacers at vulnerable corners. Check that gasket friction, adhesive stiffness, clips, and trim do not lock the panel in conflict with the mounting-clearance strategy. Evaluate hot zones and transient gradients, not only uniform steady temperature. Inspect for witness marks, edge chips, debonding, extrusion, or compression loss after cycling.
For this glass ceramic cooktop panel sealing interface design decision, record the owner, input source, drawing field, verification method, and reaction to missing evidence. Review the requirement with appliance engineering, quality, manufacturing, purchasing, and the glass supplier so that each team works from the same datums, conditions, and acceptance language. Where risk is high, test tolerance extremes instead of relying only on a nominal sample.
Design corners, splices, and low points
Corners concentrate geometric and process variation. A gasket may buckle, thin, or lift; a dispensed bead may neck down or accumulate excessive material. Define the path, minimum bend capability, overlap or splice method, and start-stop location away from the highest-risk area. Consider gravity and drainage so liquid does not pool against a weak joint. Use vision or fixture checks when the seal becomes hidden after panel placement.
For this glass ceramic cooktop panel sealing interface design decision, record the owner, input source, drawing field, verification method, and reaction to missing evidence. Review the requirement with appliance engineering, quality, manufacturing, purchasing, and the glass supplier so that each team works from the same datums, conditions, and acceptance language. Where risk is high, test tolerance extremes instead of relying only on a nominal sample.
Build a controlled assembly process
Specify cleaning materials, surface condition, primer when qualified, dispense or gasket placement method, open time, fixture, cure, and handling. Confirm that operators do not stretch preformed seals or contaminate bond areas with gloves, oil, release agents, or packaging residue. Control bead and gasket lot traceability. Provide visual standards for acceptable placement and squeeze-out. The process should detect missing, doubled, twisted, damaged, or discontinuous seal before the assembly leaves the station.
For this glass ceramic cooktop panel sealing interface design decision, record the owner, input source, drawing field, verification method, and reaction to missing evidence. Review the requirement with appliance engineering, quality, manufacturing, purchasing, and the glass supplier so that each team works from the same datums, conditions, and acceptance language. Where risk is high, test tolerance extremes instead of relying only on a nominal sample.
Validate sealing, durability, and service
Test production-intent assemblies across dimensional and process extremes. Apply representative thermal cycles, cleaning exposure, spill or ingress checks, and mechanical handling, then inspect the seal and glass edges. If the cooktop is serviceable, verify that removal does not require unsafe force and that the replacement procedure restores the intended seal. Revalidate when the panel decoration, frame coating, gasket or adhesive formulation, supplier, dispense equipment, cure schedule, or mounting geometry changes.
For this glass ceramic cooktop panel sealing interface design decision, record the owner, input source, drawing field, verification method, and reaction to missing evidence. Review the requirement with appliance engineering, quality, manufacturing, purchasing, and the glass supplier so that each team works from the same datums, conditions, and acceptance language. Where risk is high, test tolerance extremes instead of relying only on a nominal sample.
Engineering table
| Interface decision | Define on drawing/process | Verification |
|---|---|---|
| Protection target | Contaminant, direction, exposure and protected area | Representative spill, ingress or contamination check |
| Seal architecture | Gasket, adhesive or hybrid and approved material | Compatibility and durability evidence |
| Geometry | Land width, path, compression or bond-line, keepouts | Section measurement and placement inspection |
| Corners and joints | Bend, splice, overlap, start-stop and drainage | Visual/vision check plus leak-path review |
| Movement | Relative displacement, support and retention interaction | Thermal cycling and post-test edge/seal inspection |
Supplier RFQ and first-article checklist
Send the supplier the controlled drawing and CAD data, material requirement, panel size, edge and decoration details, annual demand, lot pattern, packaging requirement, and appliance-level validation conditions. Ask the supplier to identify feasibility limits and deviations in writing. Commercial quotations should reference the same drawing revision that quality and production will use.

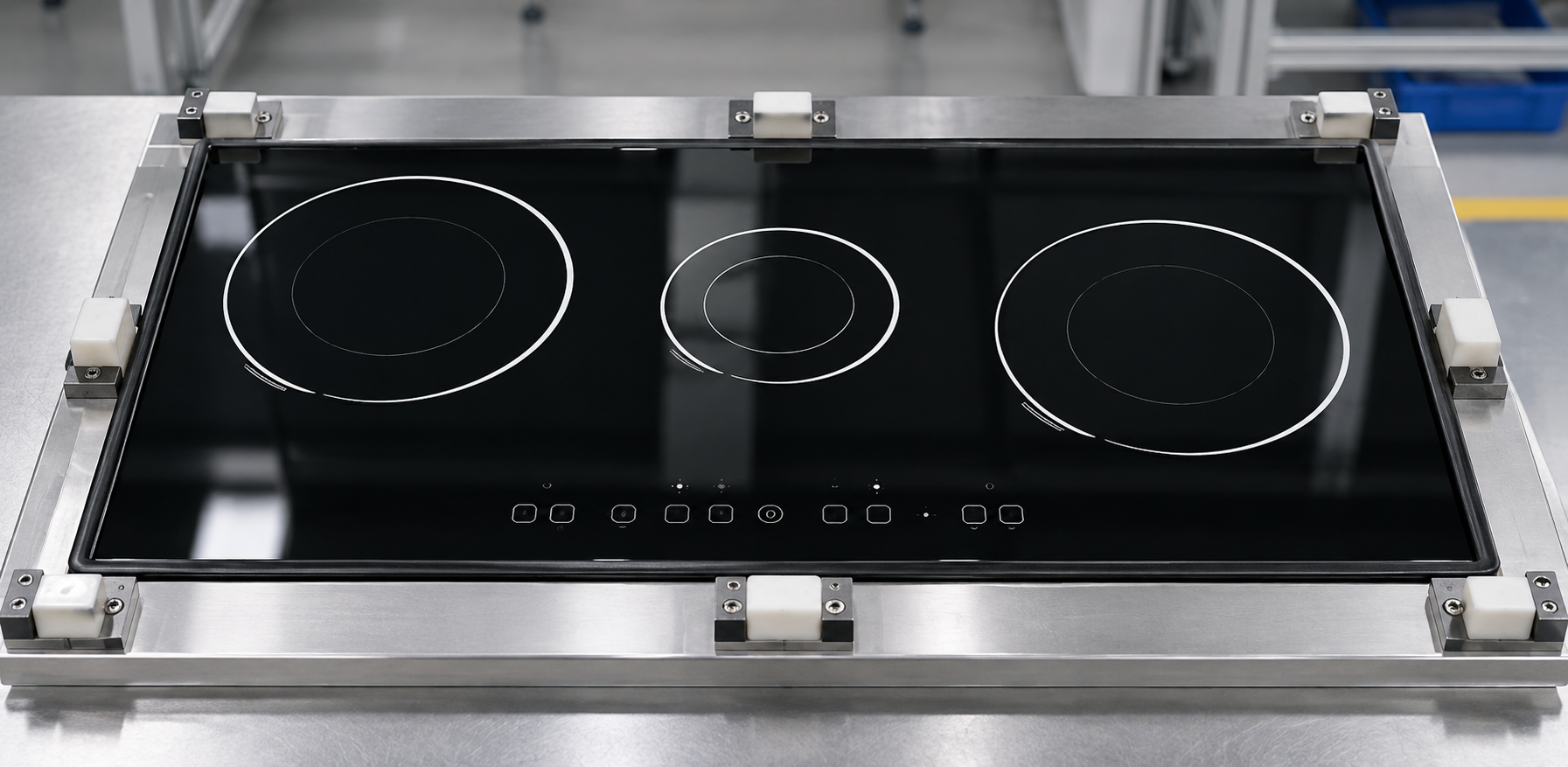

Before approving a first article, check document identity, dimensions, edge quality, surface orientation, printed features, and the specific interface covered by this guide. Assemble the sample with production-intent frame, seals, supports, and retention. Record photographs, measurements, temperatures where relevant, equipment identity, and the exact sample lot. Preserve approved masters and rejected evidence.
For serial production, inspect the characteristics that control function rather than adding unrelated measurements. Trend results by lot, tool, material batch, supplier, and assembly station. When nonconformity appears, contain affected stock, preserve samples before rework, compare with the approved setup, and verify corrective action on subsequent lots. Requalification should follow material, geometry, process, tooling, or supplier changes according to documented risk.
Educational video
This neutral educational video from Corning Museum of Glass provides useful background on glass processing and stress. It does not replace engineering calculations, appliance instructions, or qualification.
Related Kanger resources
- Black glass-ceramic product page
- Glass-ceramic material overview
- Cooktop panel mounting clearance design
- White ceramic glass screen-printing durability
For a drawing-led quotation, send Kanger the application, controlled files, expected quantities, and validation requirements. Technical review can identify missing interface information without turning this general guidance into an unsupported product guarantee.
Frequently asked questions
Is a sealant name enough to define the interface?
No. The specification also needs surfaces, preparation, path, geometry, cure, movement, keepouts, inspection, and validation conditions.
Should the gasket also locate the panel?
It may contribute to location and cushioning, but its compression and friction must remain compatible with the validated support and thermal-movement strategy.
Where should a gasket splice be placed?
Place it according to the qualified design, away from the highest-risk leak path or stressed corner, with a controlled joint method and inspection.
How should a cooktop seal be validated?
Use production-intent assemblies and representative contamination, thermal, cleaning, tolerance, handling, and service conditions, then inspect both seal and glass edge.
