A glass tube heater may refer to an infrared heating element enclosed by quartz or specialty glass, a liquid or air heater built around a glass tube, or a protective tube used in a radiant assembly. Correct selection starts with the heating method, tube material, wavelength or power target, temperature, atmosphere, dimensions, and electrical safety requirements.
This guide explains the main decisions buyers, engineers, and service teams should document before selecting or ordering glass tube heater.
The term is broad, so buyers should identify the architecture before comparing products.
Fused quartz tolerates high temperatures and can transmit useful infrared wavelengths, but grade, wall thickness, surface condition, and mounting still matter. Borosilicate and other glasses serve lower-temperature or different chemical applications.
Do not select a tube only because it looks clear. Request the named material and relevant transmission or thermal data.
Power alone does not describe delivered heat. Element temperature, wavelength, reflector geometry, distance, airflow, target absorptivity, and duty cycle determine performance.
For a complete heater, specify supply voltage, rated power, control method, lead and terminal arrangement, warm-up time, and allowable surface or process temperature.
Define tube OD, wall thickness, heated length, total length, end geometry, supports, orientation, and thermal expansion allowance. Hard clamping or contamination can create local stress.
Keep fingerprints, oils, and deposits off hot quartz according to the element manufacturer’s handling instructions.
Replacement parts must match the listed appliance or engineered assembly. The tube, element, guard, reflector, insulation, wiring, and controls work as a system.
Disconnect power, allow full cooling, and use qualified service procedures. Never energize an exposed element or defeat a protective guard.
State the heater type, medium or target, material, dimensions, voltage, power, wavelength or temperature requirement, atmosphere, mounting, terminals, control, safety standard, inspection, and annual quantity.
Kanger’s custom glass and glass-ceramic capabilities may support protective or functional components; the complete electrical heater assembly requires system-level engineering and validation.
For a drawing-led project, review Kanger’s custom glass and glass-ceramic products and send the application, dimensions, material requirement, annual quantity, and validation criteria with the enquiry.
Begin with an energy balance and the load, not only the heater wattage. Define the required heat-up time, steady-state duty, fluid or air flow, inlet and outlet temperatures, ambient losses, and allowable surface temperature. The electrical designer then selects power density, control, sensors, insulation, and protection consistent with the heater and tube supplier’s limits.
Tube material must suit the heat source and atmosphere. Fused quartz is commonly considered for infrared transmission and high-temperature service; borosilicate may suit lower-temperature assemblies where chemical durability and formability matter. Glass-ceramic may be used as a protective window or panel rather than a tubular element. These materials are not interchangeable solely because they look transparent.
Mechanical details often determine reliability. Supports should avoid point loads and allow thermal expansion. Seals, electrodes, reflectors, adhesives, and metal parts must not create incompatible expansion or hot spots. Any liquid system needs dry-fire protection and a strategy for scale, bubbles, flow loss, and pressure. Electrical insulation, grounding, guarding, and over-temperature shutdown require review against the applicable product standard.

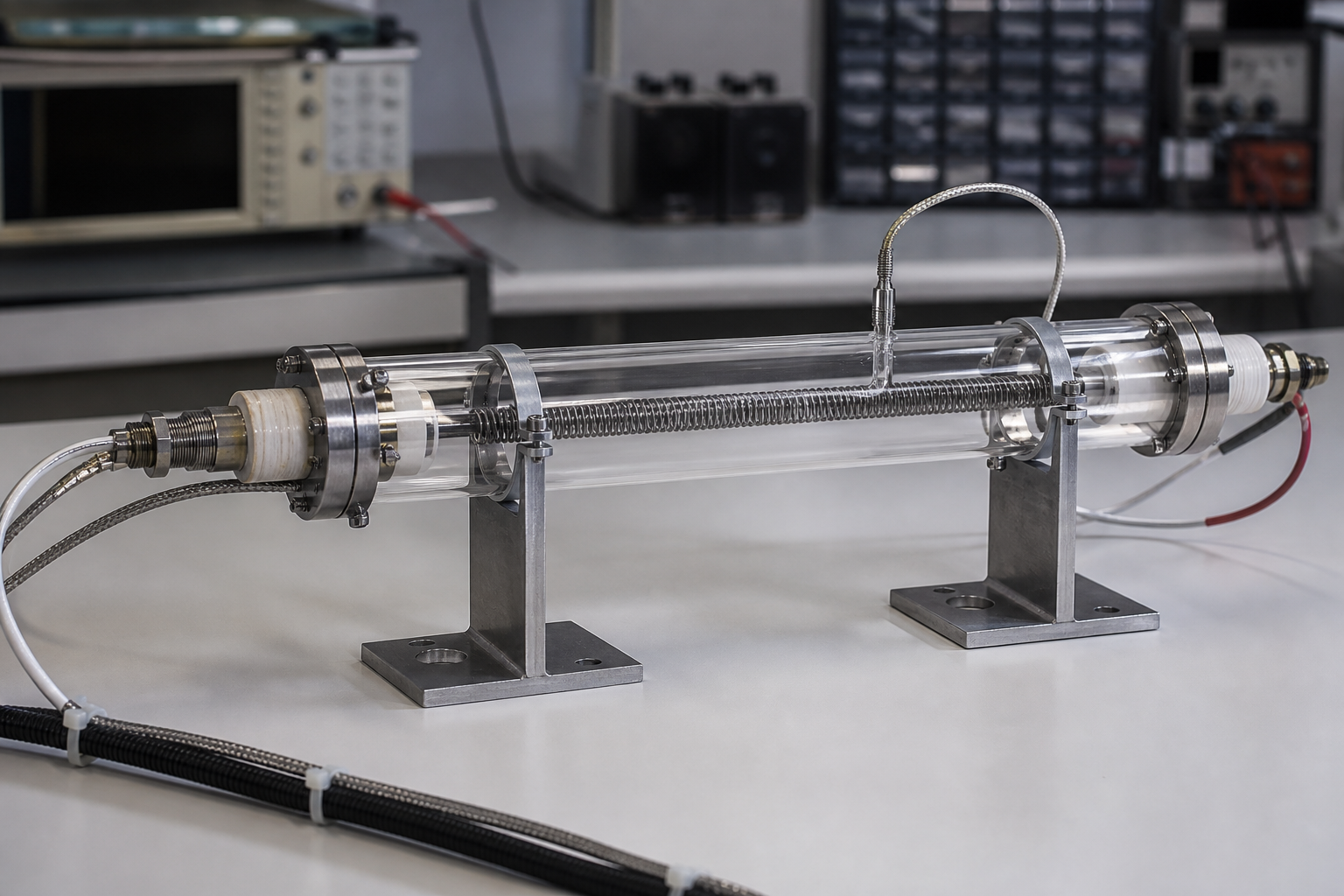

Qualification should cover normal operation and credible faults such as blocked flow, failed control, sensor displacement, low liquid level, fan loss, and rapid cycling. Record temperatures at the hottest glass location, not only at the process outlet. A controlled prototype test is essential before assigning a service rating.
A reliable answer to this topic begins with a decision statement: whether the tube, heating element, controls, seals, and safeguards form a reliable assembly under normal and fault conditions. That statement prevents a broad material claim from replacing an application-specific requirement. The team should identify the instrumented production-intent heater with final tube geometry, supports, insulation, sensor location, flow path, and control logic as the qualification unit. Testing only a convenient coupon can miss interfaces, edge conditions, supports, coatings, seals, or process history that determine whether the finished product works. The approved drawing, revision, test sample, and operating assumptions should therefore use the same configuration.
Build the validation sequence around the damage and variation that the part will actually experience: heat-up, steady duty, rapid cycling, blocked or lost flow, dry operation where credible, scale, pressure, vibration, and ambient heat loss. These exposures should not be selected as impressive numbers without context. Their severity, order, dwell, recovery period, and sample orientation need to be written down. Combined exposure is often more revealing than isolated tests because cleaning can weaken a hot surface, a thermal cycle can change a seal, and handling damage can become critical only after the assembly is loaded.

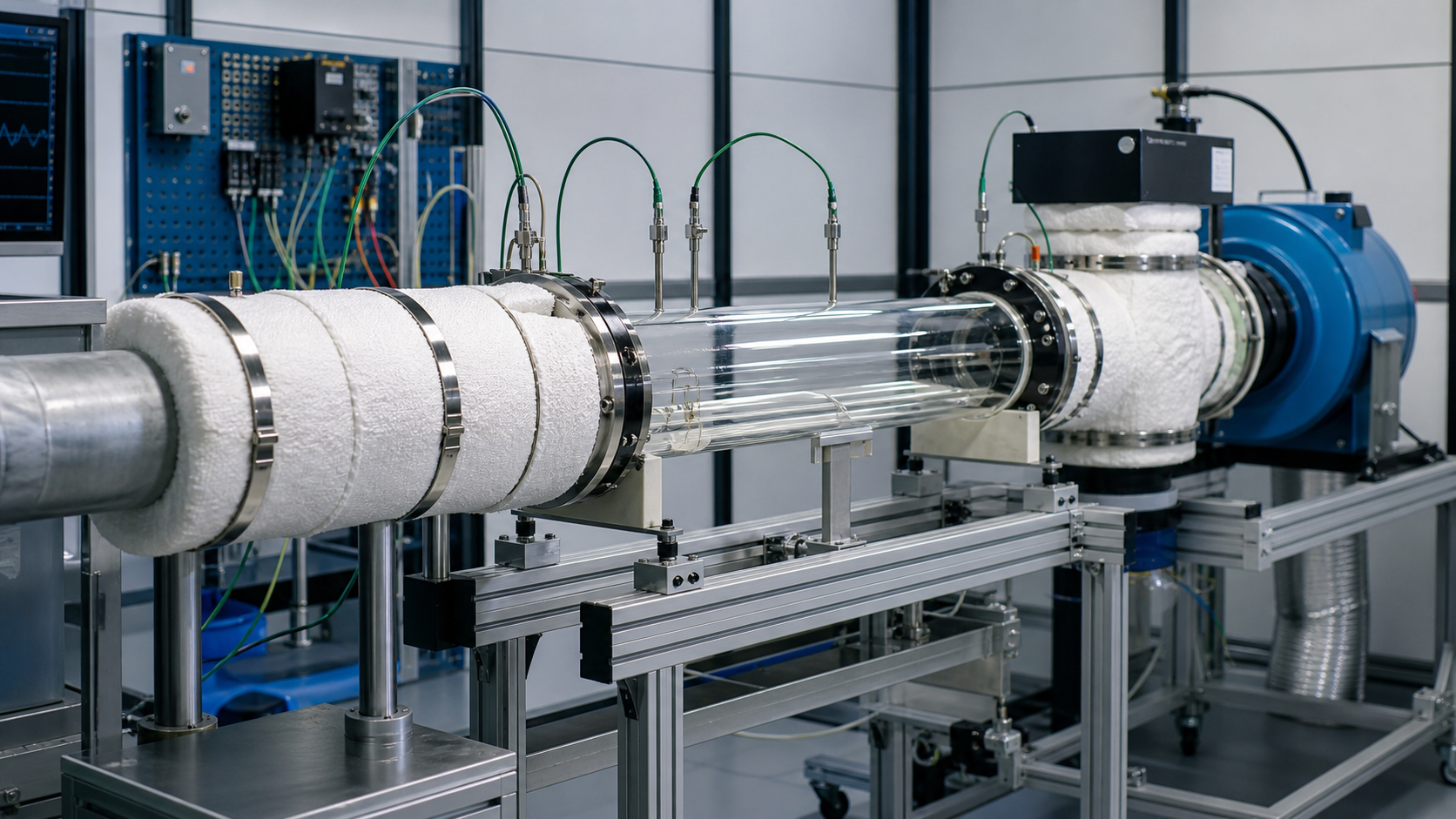

Record evidence that can be compared before and after exposure. For glass tube heater design, the useful evidence includes hottest glass temperature, outlet temperature, flow, power, ramp rate, thermal gradient, leakage, electrical insulation, control response, and shutdown. Define the instrument or inspection condition, sample count, acceptance limit, and treatment of borderline results before testing begins. Photographs help with traceability, but they do not replace measurements where a specification calls for a number. Conversely, a single numeric result does not replace a whole-part visual and functional inspection.
The failure review should remain tied to plausible mechanisms. In this case, outlet temperature can hide a local hot spot; rigid supports restrain expansion; sensor displacement or scale can defeat normal control. When a result fails, preserve the sample and process record, identify where the change began, and decide whether the cause lies in material, geometry, processing, assembly, operation, or the test itself. Repeating the same test without correcting an uncontrolled variable can produce a reassuring result without resolving the underlying risk.
Use staged approval. First confirm material identity and drawing completeness. Next approve a representative first article. Then run the defined durability or service simulation. Finally, verify that production controls can reproduce the qualified part. Assign a rating only after the complete assembly passes normal-duty endurance and defined single-fault tests. Any later change to material source, geometry, surface treatment, thermal recipe, support, seal, or test method should trigger a documented review rather than an automatic carry-over of the old approval.
For purchasing, request a concise evidence package instead of a generic claim. It should contain the controlled drawing, material designation, critical-process statement, inspection method, acceptance criteria, sample or lot identification, and nonconformance path. For engineering, keep a signed master sample where appearance matters and store raw measurements with the report. This makes supplier comparisons fairer, shortens root-cause work, and prevents a marketing phrase from becoming an undocumented safety or lifetime promise.
| Stage | Control | Evidence | Why it matters |
|---|---|---|---|
| Thermal model | Flow, inlet/outlet target, losses and heat-up time | Energy balance and prototype correlation | Sets realistic power |
| Glass and mechanics | Material, OD, wall, heated length and supports | Temperature and stress review | Prevents hot spots and restraint |
| Control and safety | Sensors, limiter, flow proof and guarding | Normal and fault response | Limits foreseeable hazards |
| Qualification | Cycling, blocked flow, scale and sensor fault | Instrumented test report | Supports the service rating |
Educational video: Raw Materials of Glass by The Corning Museum of Glass. This neutral explainer supports the material or safety principle discussed above; it is not a substitute for the product drawing, appliance manual, or qualification test. Watch on YouTube.
Approval is not the end of the glass tube heater qualification process. Record the approved supplier, material designation, drawing revision, manufacturing route, inspection method, reference sample, and test-report identifier in one controlled release file. Purchasing should require advance notice when any of those inputs changes. Engineering can then decide whether the change needs document review, limited confirmation testing, or full requalification. This is especially important when two parts have the same nominal dimensions but differ in glass composition, edgework, coating, thermal history, support, gasket, or packaging.
Incoming inspection should verify the characteristics that can drift or be damaged before assembly, while periodic audits should confirm the properties that cannot be checked economically on every part. Keep nonconforming samples long enough to support root-cause analysis, and link corrective actions to the affected lots and assemblies. A clear deviation process allows a temporary concession only when the responsible engineer has reviewed function, safety, appearance, and traceability. Verbal approval or a supplier’s general datasheet should never silently replace the controlled product requirement.
No. Quartz is common for high-temperature infrared elements, while other glass types serve different temperature and chemical conditions.
Only when the equipment manufacturer provides an approved replacement procedure and matching part.
Element temperature, wavelength, power, reflector, distance, airflow, target material, and duty cycle all matter.
Include OD, wall, heated length, total length, end details, mounting points, and terminal arrangement.
